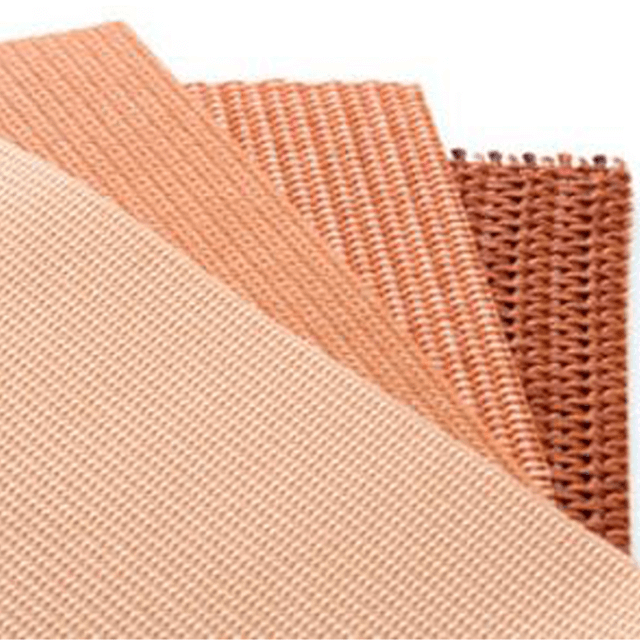

EP Canvas Rubber Coated Fabric for Conveyor Belt
The same structure of warp and weft,adjust the weaving way to keep the consistency for the weft and warp side(the same strength,same density and same elongation),so the final products turn out to have a high stability,widely uesd in rubber cups ,rubber diaphragms and so on.
| Quantity: | |
|---|---|
-
kindom
| Specification of NN fabric | |||||||||||||||
| Item | Unit | NN100 | NN125 | NN150 | NN200 | NN250 | NN300 | EP400 | |||||||
| Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | ||
| Yarn | Dtex | 1400*1 | 1400*1 | 1400*1 | 1400*1 | 1870*1 | 1400*1 | 1400*2 | 1870*1 | 1870*2 | 1870*1 | 1400*3 | 1400*2 | 1870*3 | 1870*2 |
| Density | End/10cm | 138±2 | 54±2 | 150±2 | 65±2 | 136±2 | 66±2 | 122±2 | 59±2 | 108±2 | 63±2 | 124±2 | 43±2 | 123±2 | 36±2 |
| Breaking strength | N/cm | 1250 | 450 | 1500 | 550 | 1750 | 650 | 2260 | 760 | 2800 | 780 | 3450 | 840 | 4450 | 840 |
| Elongation at break | % | ≥24 | ≤60 | ≥24 | ≤60 | ≥25 | ≤50 | ≥27 | ≤50 | ≥25 | ≤40 | ≥27 | ≤40 | ≥29 | ≤40 |
| Elongation at load 10% | % | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | |||||||
| 粘合力 Adhesion | N/2.5cm | ≥196 | ≥196 | ≥196 | ≥196 | ≥196 | ≥196 | ≥196 | |||||||
| Hot air Shrinkage 150℃ 30min | % | 5 | 1 | 5 | 1 | 5 | 1 | 6 | 1 | 6 | 1 | 6 | 1 | 6 | 1 |
| Weight | G/m² | 290±15 | 340±15 | 380±20 | 500±20 | 590±30 | 690±30 | 840±35 | |||||||
| Thickness | mm | 0.5±0.05 | 0.55±0.06 | 0.65±0.07 | 0.8±0.09 | 1.10±0.01 | 1.05±0.1 | 1.20±0.12 | |||||||
| Width | mm | 650-2000 | 650-2000 | 650-2000 | 650-2000 | 650-2000 | 650-2000 | 650-2000 | |||||||
| Length | m | 400-1000 | 400-1000 | 400-1000 | 400-1000 | 400-1000 | 400-1000 | 400-1000 | |||||||
