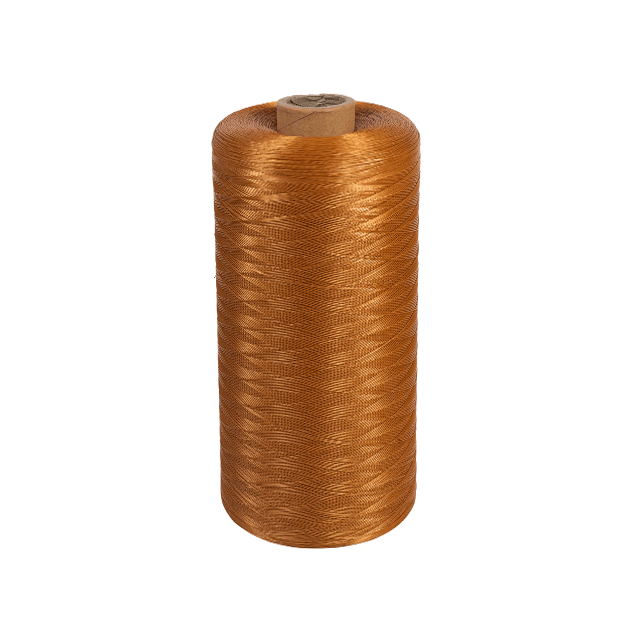

Silicone dipping cord polyester yarn high strength for cable
Cables is weaved by polyester dip yarn,which has high strength and good adhension.Textile reinforcements in the cable cover absorb forces and simplify the installation process.
| Quantity: | |
|---|---|
-
kindom
| polyester dipped yarn | ||||
| Test Item | Unit | 1000D/1*2 | 1500D/1*2 | 2000D/1*2 |
| Breaking Strength | N | ≥140 | ≥205 | ≥280 |
| Elongation at Break | % | 15±2.0 | 15±2.0 | 15±2.0 |
| Elongation at 44.4N | % | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 |
| Weight per 100 m | g/100m | 25±2 | 37.5±3 | 49±4 |
| Cord Diameter | mm | 0.56±0.03 | 0.66±0.03 | 0.75±0.03 |
| Hot air Shrinkage 150℃ 3min 130g | % | ≤3.5 | ≤3.5 | ≤3 |
| T-Adhesion at150℃30min | N/cm | ≥125 | ≥140 | ≥170 |
| polyester dipped yarn | ||||
| Test Item | Unit | 1000D/1*2 | 1500D/1*2 | 2000D/1*2 |
| Breaking Strength | N | ≥140 | ≥205 | ≥280 |
| Elongation at Break | % | 15±2.0 | 15±2.0 | 15±2.0 |
| Elongation at 44.4N | % | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 |
| Weight per 100 m | g/100m | 25±2 | 37.5±3 | 49±4 |
| Cord Diameter | mm | 0.56±0.03 | 0.66±0.03 | 0.75±0.03 |
| Hot air Shrinkage 150℃ 3min 130g | % | ≤3.5 | ≤3.5 | ≤3 |
| T-Adhesion at150℃30min | N/cm | ≥125 | ≥140 | ≥170 |
