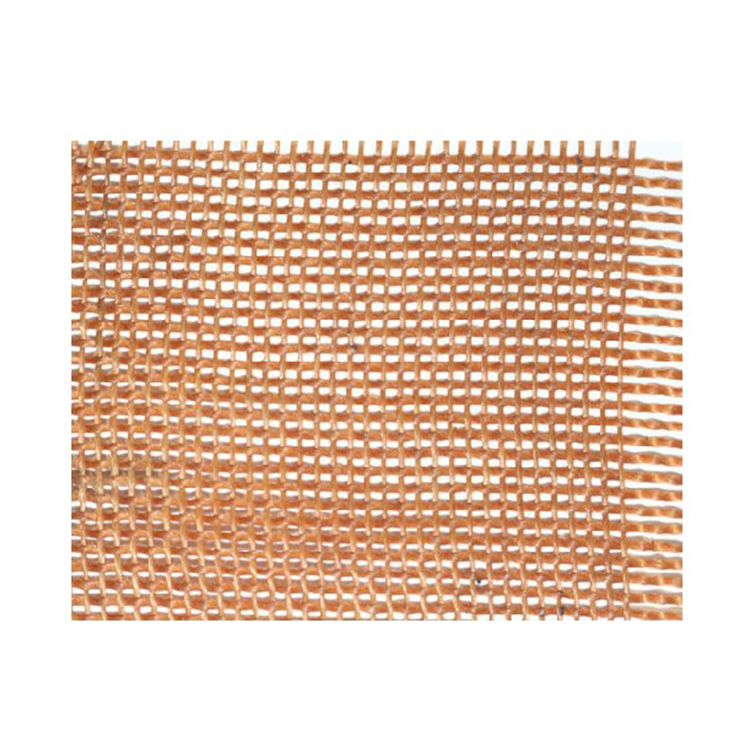

Nylon 66 monofilament dipping tire bead cloth dipped nylon fabric
| Color: | |
|---|---|
| Quantity: | |
-
kingdom
| Dipped N6 tyre cord fabric | ||||||
| SPEC | Unit | 840D/2 | 1260D/2 | 1260D/3 | 1680D/2 | 1890D/2 |
| Breaking strength | N/end | ≥137.2 | ≥215.6 | ≥313.6 | ≥297.3 | ≥313.6 |
| 100N extension under given load | % | 9.5±0.5 | 9.5±0.5 | |||
| 88.2N extension under given load | % | 9.5±0.5 | ||||
| 66.6N extension under given load | % | 9.5±0.5 | ||||
| 44.1N extension under given load | % | 9.5±0.5 | ||||
| Adhesion | N/cm | 117.6 | 147 | 176.4 | 166.6 | 176.4 |
| Dip pick up | % | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 |
| Breaking strength difference | % | ≤3.8 | ≤3.8 | ≤3.8 | ≤3.8 | ≤3.8 |
| Shrinkage in hot air | % | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 |
| Twist | T/m | 460±15 | 370±15 | 320±15 | 330±15 | 320±15 |
| Water content | % | 1 | 1 | 1 | 1 | 1 |
brief introduction
The same structure of warp and weft,adjust the weaving way to keep the consistency for the weft and warp side(the same strength,same density and same elongation),so the final products turn out to have a high stability,widely used in rubber cups ,rubber diaphragms and so on.
AlI of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.We are looking forward to working with you all over the world in the near future.
