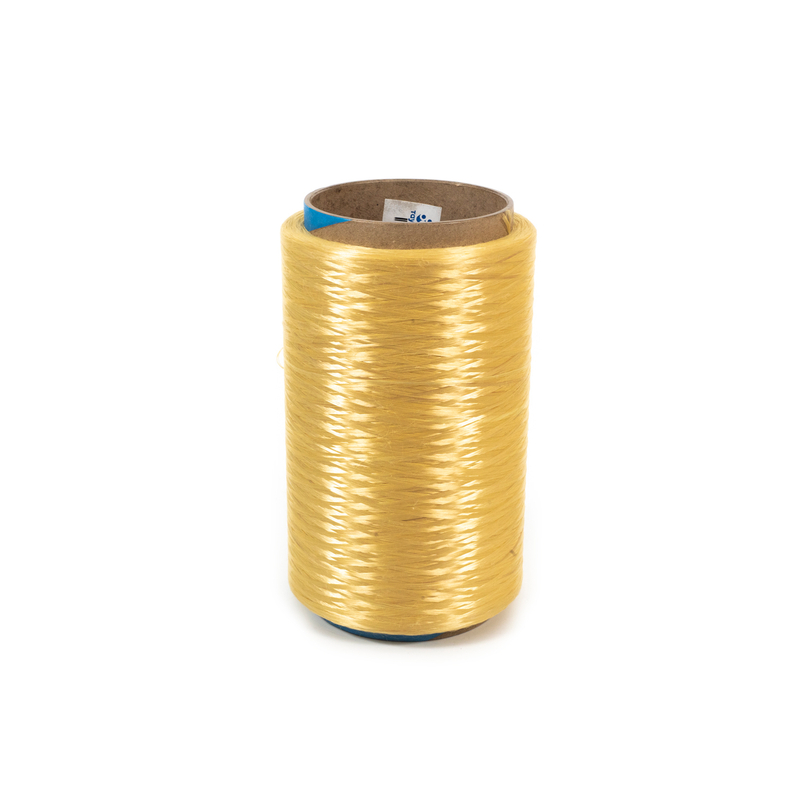

High strength dipped aramid filament yarn
The product is in higher strength,good adhesion,low shrinkage,high stability.
Widely used in high-pressure rubber hose and other industrial products.
| Quantity: | |
|---|---|
-
kingdom
Test Item | Unit | Construction | ||||||||||||
830 dtex | 110 0dtex | 1670dtex | ||||||||||||
| 1*2 | 1*2 | 1*3 | 2*3 | 1*2 | 1*3 | 1*5 | 2*3 | 2*5 | 3*3 | 3*4 | 3*5 | 4*5 | ||
| Breaking strength | N | ≥ 270 | ≥ 310 | ≥ 480 | ≥ 900 | ≥ 480 | ≥ 650 | ≥ 1100 | ≥ 1350 | ≥ 2400 | ≥ 2100 | ≥2700 | ≥ 3500 | ≥ 4500 |
| Elongation at break | % | 3.8 | 4.0 | 4.0 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4..5 | 4.5 | 4.6 | 5.0 | 5.2 |
| Elongation at setload | % | 1.0 @100N | 1.5 @100N | 1.6 @200N | 1.3 @200N | 2.0@200N | 1.5@200N | 1.2@200N | 1.0@200N | 2.2@800N | 1.5@600N | 2.0@800N | 2.3@1000N | 2.5@1700N |
| Weight per 100m | g/100m | 18±5 | 25±5 | 35±5 | 80±10 | 35±5 | 55±5 | 113±5 | 115±5 | 190±10 | 185±10 | 230±15 | 300±15 | 400±15 |
| Cord diameter | mm | 0.35±0.05 | 0.55±0.5 | 0.65±0.05 | 0.9±0.1 | 0.65±0.05 | 0.85±0.05 | 1.23±0.05 | 1.25±0.05 | 1.60±0.01 | 1.5±0.1 | 1.75±0.15 | 2.0±0.15 | 2.3±0.05 |
| T-Adhesion | N | ≥8 | ≥10 | ≥15 | ≥40 | ≥20 | ≥20 | ≥30 | ≥45 | ≥50 | ≥50 | ≥60 | ≥60 | ≥80 |
