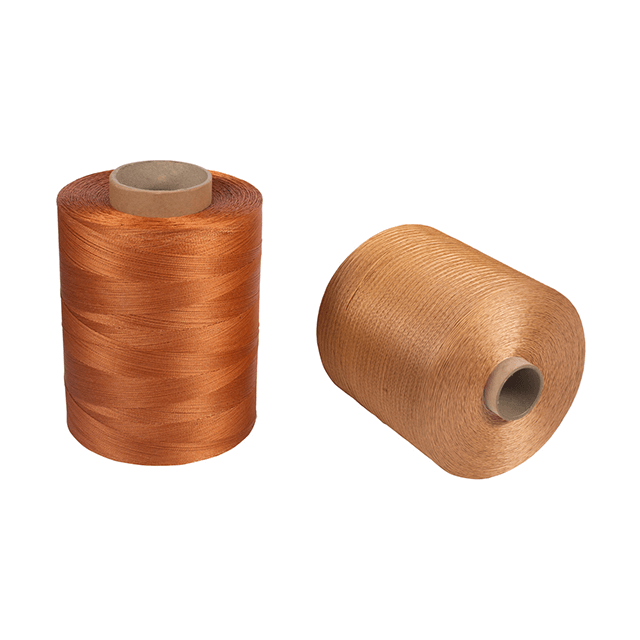

High Strength Nylon Rubber Coated Yarn for Rubber Tube
Nylon thread high tenacity dipped nylon soft cord is in higher strength、good adhension ,low shrinkage,high stability.Widely used in high-pressure rubber hose and others industrial products.
| Quantity: | |
|---|---|
-
kindom
| Nylon66 yarn Specification | ||||||
| Test Item | Unit | 840D/1*2 | 1260D/1*2 | 1680D/1*2 | 1890D/1*2 | 1680D/1*3 |
| Breaking Strength | N | ≥127.4 | ≥205.8 | ≥264.6 | ≥294 | ≥400 |
| Elongation at Break | % | 15±2.0 | 21.5±2.0 | 22±2.0 | 22±4.0 | 22±4.0 |
| Elongation at | % | 8.5±1.0 | 8.7±1.0 | 8.7±1.0 | 9.0±1.0 | 9.0±1.0 |
| @44.4N | @66.6N | @88.2N | @100N | @100N | ||
| Weight per 100 m | g/100m | 22±2 | 34±2 | 44±2 | 49±4 | 66±4.0 |
| Cord Diameter | mm | 0.55±0.03 | 0.65±0.05 | 0.75±0.05 | 0.82±0.05 | 1.0±0.06 |
| Hot air Shrinkage 150℃ 3min 130g | % | ≤6.5 | ≤6.5 | ≤5 | ≤5 | ≤5 |
| T-Adhesion at150℃30min | N/cm | ≥96 | ≥117.6 | ≥127.4 | ≥137.2 | ≥190 |
