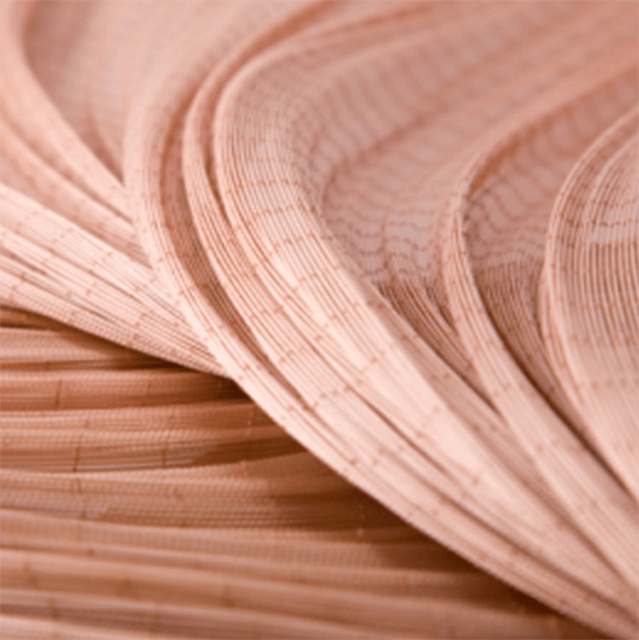

Factory Price Nylon 6 Dipped Tire Cord Fabric Scrap
Dipped chafer fabric has higher breaking strength and good adhesion,which is widely used in the tire chafer (especially for high speed tires),rubber board and rubber tubs etc framework material。Standard products mainly made of nylon6,nylon 66 and polyester.It's mesh construction,of course, we can also customize it for you.
| Quantity: | |
|---|---|
-
kindom
| Dipped nylon 6 monofilament chafer | |||
| SPEC | UNIT | 420D/1*420D/1 | 450D/1*450D/1 |
| Weft Breaking strength | N/end | ≥20 | ≥30 |
| Warp Breaking strength | N/end | ≥20 | ≥30 |
| Weft Elongation at break | % | 30±5 | 30±5 |
| Warp Elongation at break | % | 25±5 | 25±5 |
| weft density | End/inch | Based on customers’request | Based on customers’request |
| warp density | End/inch | Based on customers’request | Based on customers’request |
| Weft shrinkage in hot air | % | ≤2.0 | ≤2.0 |
| Warp shrinkage in hot air | % | ≤3.0 | ≤3.0 |
| Adhesion | Kg/inch | ≥20 | ≥20 |
| Dip pick up | % | 3±1.5 | 3±1.5 |
| Water content | % | 1.5 | 1.5 |
| Thickness | mm | 0.5±0.05 | 0.5±0.07 |
| Width | cm | 100-150 | 100-150 |
| Dipped nylon 6 monofilament chafer | |||
| SPEC | UNIT | 420D/1*420D/1 | 450D/1*450D/1 |
| Weft Breaking strength | N/end | ≥20 | ≥30 |
| Warp Breaking strength | N/end | ≥20 | ≥30 |
| Weft Elongation at break | % | 30±5 | 30±5 |
| Warp Elongation at break | % | 25±5 | 25±5 |
| weft density | End/inch | Based on customers’request | Based on customers’request |
| warp density | End/inch | Based on customers’request | Based on customers’request |
| Weft shrinkage in hot air | % | ≤2.0 | ≤2.0 |
| Warp shrinkage in hot air | % | ≤3.0 | ≤3.0 |
| Adhesion | Kg/inch | ≥20 | ≥20 |
| Dip pick up | % | 3±1.5 | 3±1.5 |
| Water content | % | 1.5 | 1.5 |
| Thickness | mm | 0.5±0.05 | 0.5±0.07 |
| Width | cm | 100-150 | 100-150 |
