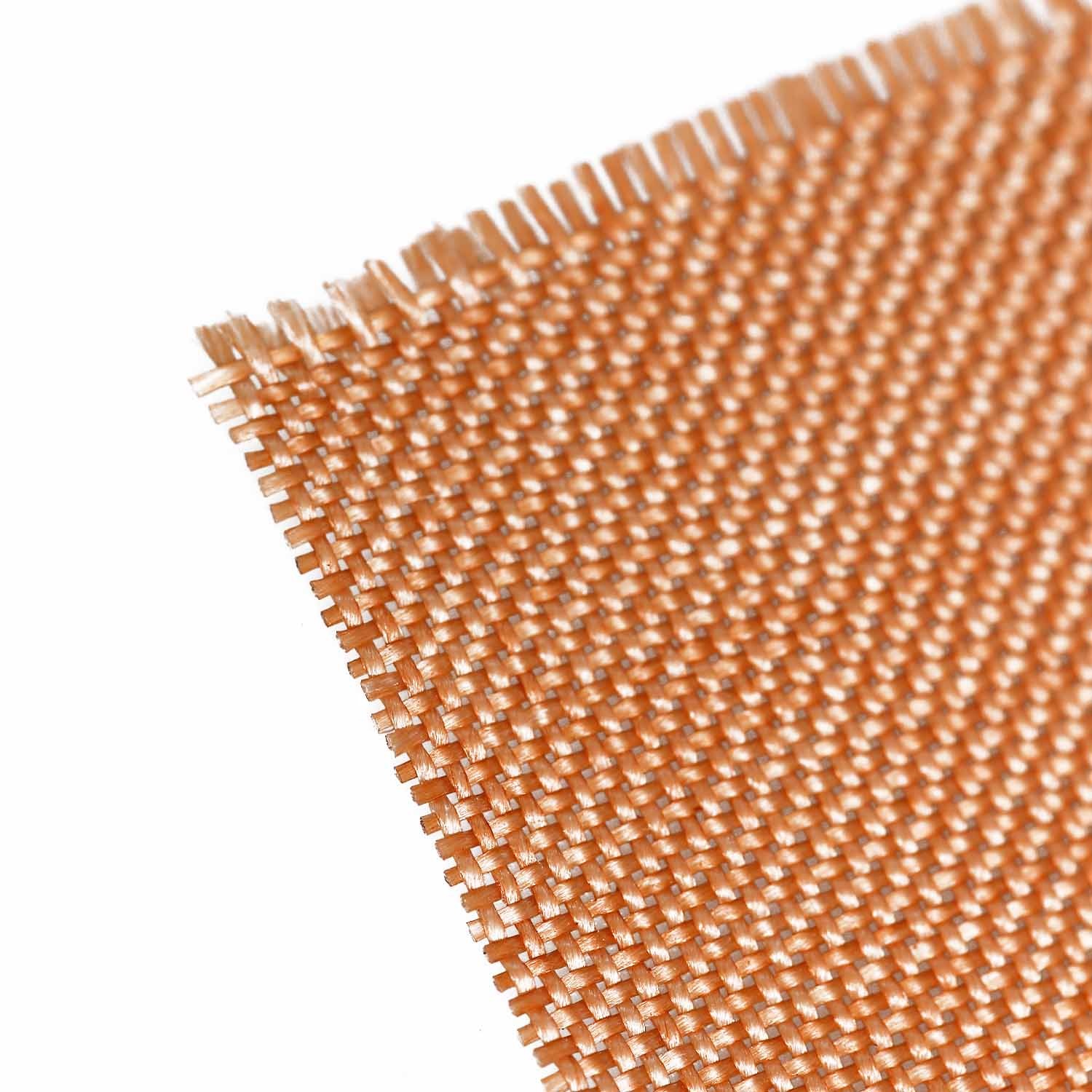

Dipped Nylon 6 Monofilament Chafer Fabric
Tire cord fabric is very low weft density of the fabric,looking like curtain,the waro bears load,weft hold th warp.Nomally it can be used in tire cord,air spring,rubber products,helping with the great shock load and strong vibratiom.
| Quantity: | |
|---|---|
-
kingdom
Specification
| SPEC | UNIT | 840D/1*840D/1 | 840D/1*840D/1 |
| Content | Nylon6 | Nylon66 | |
| Weft breaking strength | N/end | ≥69 | ≥71 |
| Warp breaking strength | N/end | ≥67 | ≥68 |
| Weft elongation at break | % | 30±5 | 30±5 |
| Warp elongation at break | % | 25±5 | 25±5 |
| Weft density | end/inch | based on customer's request | based on customer's request |
| Warp density | end/inch | based on customer's request | based on customer's request |
| Weft shrinkage in hot air | % | ≤2.0 | ≤2.0 |
| Warp shrinkage in hot air | % | ≤3.0 | ≤3.0 |
| Adhesion | kg/inch | ≥20 | ≥20 |
| Dip pick up | % | 11±3 | 11±3 |
| Water content | % | 1.5 | 1.5 |
Specification
| SPEC | UNIT | 840D/1*840D/1 | 840D/1*840D/1 |
| Content | Nylon6 | Nylon66 | |
| Weft breaking strength | N/end | ≥69 | ≥71 |
| Warp breaking strength | N/end | ≥67 | ≥68 |
| Weft elongation at break | % | 30±5 | 30±5 |
| Warp elongation at break | % | 25±5 | 25±5 |
| Weft density | end/inch | based on customer's request | based on customer's request |
| Warp density | end/inch | based on customer's request | based on customer's request |
| Weft shrinkage in hot air | % | ≤2.0 | ≤2.0 |
| Warp shrinkage in hot air | % | ≤3.0 | ≤3.0 |
| Adhesion | kg/inch | ≥20 | ≥20 |
| Dip pick up | % | 11±3 | 11±3 |
| Water content | % | 1.5 | 1.5 |
