100% Polyester Cord Fabric Dipped Polyester for Tire 1100 Dtex

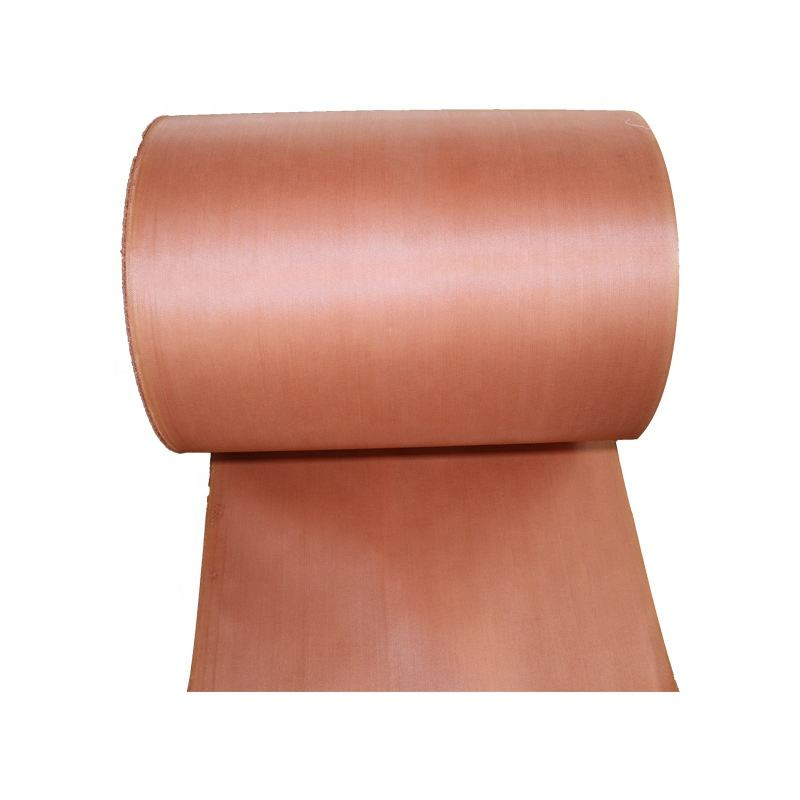

Tire cord fabric is very low weft density of the fabric,look like curtain,the warp bears load ,weft hold the warp. Normally it can be used in tire cord,air spring, rubber products,helping with the great shock load and strong vibration.420D Tire cord is the star product in our company,which is frequently used in the whole industry.
| Color: | |
|---|---|
| Quantity: | |
-
kingdom
| Dipped polyester tyre cord fabric | |||||
| Item | Unit | 1000D/2 (1100dtex/2) | 1300D/2 (1440dtex/2) | 1500D/2 (1670dtex/2) | 2000D/2 (2200dtex/2) |
| Breaking strength (min) | N/end | 140 | 180 | 205 | 270 |
| Elongation at 44.1N | % | 4.5± 1.0 | |||
| Elongation at 58.0N | % | 4.5±1.0 | |||
| Elongation at 66.6N | % | 4.5±1.0 | |||
| Elongation at 88.2N | % | 4.5±1.0 | |||
| Elongation at 100N | % | ||||
| Adhesion(H-test)(min) | N/cm | 125 | 135 | 140 | 170 |
| Breaking strength difference(max) | % | 4 | 4 | 4 | 4 |
| Breaking elongation difference(max) | % | 5 | 5 | 5 | 5 |
| Dip pick up | % | 3.5±1 | 3.5±1 | 3.5±1 | 3.5±1 |
| Breaking elongation(min) | % | 14 | |||
| Diameter | mm | 0.56±0.03 | 0.61±0.03 | 0.66±0.03 | 0.75±0.03 |
| Pingle twist(Z) | T/10cm | 45±1.5 | 40±1.5 | 37±1.5 | 33±1.5 |
| Ply twist (S) | T/10cm | 45±1.5 | 40±1.5 | 37±1.5 | 33±1.5 |
| Hot air shrinkage 177℃*2min*0.05CN/dtex(min) | % | 2 | 2 | 2 | 2 |
| Elongation @Breaking of weft yarn(min) | % | 120 | 120 | 120 | 120 |
FAQ .
1. who are we?
We are based in Jiangsu, China, start from 2019,sell to Southeast Asia(50.00%),Eastern Asia(10.00%),Africa
Asia(10.00%),Africa(10.00%),North America(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total
about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment,
3.what can you buy from us?
tire cord fabric,tyre cord,dipped soft cord,dipped fabric,polyester rubber cord
4. why should you buy from us not from other suppliers?
suzhou kingdom textile co,td is established in 2009, was used to be called wuxiu. It is a manufacturer and trader
company. specialized in the research, development and production of dipped yarn, rubber yarn, conveyer belt.
